Description

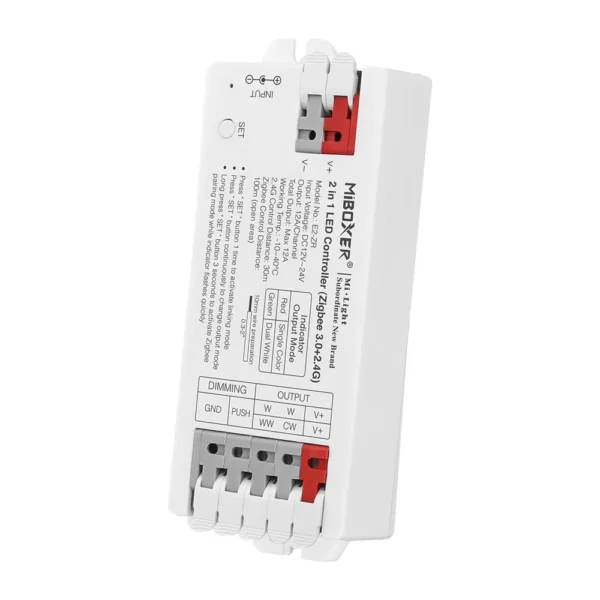

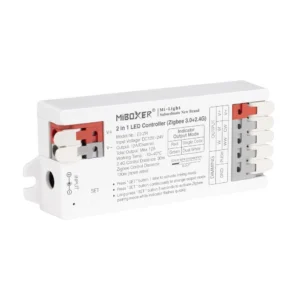

Mi-Light E2-ZR Zigbee 3.0 2-in-1 LED Controller – Single Colour & CCT Smart Lighting Control

The Mi-Light E2-ZR Zigbee 3.0 2-in-1 LED Controller combines modern Zigbee smart home control with compatibility across the Mi-Light 2.4GHz remote and wall panel range. Designed for both single-colour LED strips and CCT adjustable white LED lighting, it allows smooth dimming, on/off switching, and warm-to-cool white adjustment using a smartphone app, voice assistant, handheld remote, or wall-mounted controller. Suitable for 12V and 24V LED installations, the E2-ZR is ideal for kitchens, under-cabinet lighting, furniture, media walls, campervans, motorhomes, boats, retail displays, and commercial interiors.

One Controller for Two LED Lighting Types

The E2-ZR can be configured to operate either of the following:

• Single-colour LED strips – switch the lighting on or off and adjust the brightness smoothly.
• CCT adjustable white LED strips – control brightness and adjust the colour temperature from warm white to cool white.

Simply select the required operating mode during setup to match the LED strip or light fitting being connected.

Zigbee 3.0 Smart Home Control

Using the Zigbee 3.0 protocol, the E2-ZR can be added to a compatible Zigbee gateway or smart home hub. Depending on the hub and ecosystem used, this allows control through smartphone apps, voice assistants, schedules, scenes, and automated routines.

Potential compatible systems include:

• Amazon Echo devices with a built-in Zigbee hub
• Samsung SmartThings
• Home Assistant using a compatible Zigbee coordinator
• Tuya Zigbee gateways
• Other compatible Zigbee 3.0 hubs

Available functions and compatibility may vary depending on the Zigbee hub and smart home platform being used.

Also Compatible with Mi-Light 2.4GHz Remotes

Unlike many standard Zigbee LED controllers, the E2-ZR also works with compatible Mi-Light and MiBoxer 2.4GHz RF remotes and wall panels. This gives you the flexibility to use smart app control alongside a physical remote or wall-mounted controller.

The controller can be paired with compatible:

• Handheld remotes
• Wall-mounted touch panels
• Single-zone remotes
• Multi-zone remotes

This is particularly useful where some users prefer app or voice control while others want the simplicity of a traditional remote. View our range of compatible remotes here.

Flexible Ways to Control Your Lighting

Depending on your chosen setup, the E2-ZR can be controlled through:

• A smartphone app via a compatible Zigbee hub
• Voice assistants through the connected smart home platform
• Mi-Light handheld remotes
• Mi-Light wall-mounted control panels
• Scenes, schedules, and automation routines

Ideal Applications

Kitchens and under-cabinet lighting
Use single-colour lighting for straightforward dimming or CCT strips to change from bright cool white task lighting to softer warm white evening illumination.

Campervans, motorhomes, and caravans
Control low-voltage cabin lighting through a physical remote while retaining the option of Zigbee smart control.

Boats and marine interiors
Ideal for cabins, saloons, galleys, and other 12V or 24V interior lighting installations.

Furniture and architectural lighting
Suitable for wardrobes, shelving, media walls, alcoves, display cabinets, and bespoke joinery.

Retail and commercial spaces
Create controllable display lighting, adjustable white working areas, and automated lighting schedules.

Why Choose the Mi-Light E2-ZR?

The E2-ZR provides the convenience of a modern Zigbee lighting system without removing the option of a dedicated physical remote. It is an excellent choice for projects focused on high-quality white lighting, offering either simple single-colour dimming or full adjustable white control from one compact controller.

Key Features & Benefits

• 2-in-1 controller – supports single-colour and CCT adjustable white LED lighting.
• Zigbee 3.0 connectivity – integrates with compatible smart home gateways and ecosystems.
• Mi-Light 2.4GHz compatibility – works with suitable handheld remotes and wall panels.
• Multiple control options – app, voice, automation, remote, or wall panel.
• 12V and 24V operation – suitable for domestic, leisure, marine, and commercial lighting.
• Smooth dimming – precise brightness adjustment for single-colour and CCT LEDs.
• Adjustable white control – select warm white, cool white, or any shade in between when used with CCT lighting.
• Compact design – easy to conceal behind panels, inside cabinetry, or near the LED installation.

Important Compatibility Information

A compatible Zigbee 3.0 hub or gateway is required for smartphone app control, voice commands, scenes, and automation.

A gateway is not required when using the controller solely with a compatible Mi-Light 2.4GHz remote or wall panel.

Compatible with our range of Mi-Light 2.4GHz remotes here.

This controller is intended for single-colour and CCT adjustable white LED lighting only. It is not suitable for RGB, RGBW, or RGB+CCT LED strips.
