Description

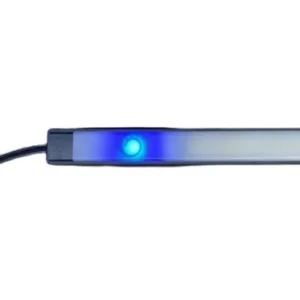

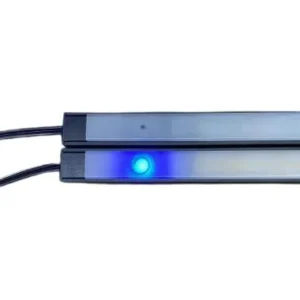

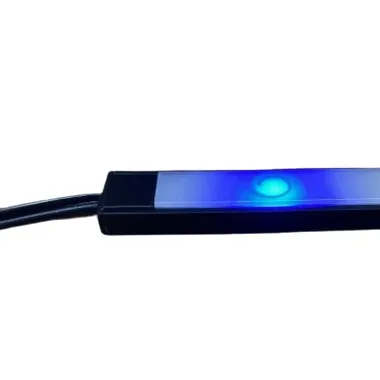

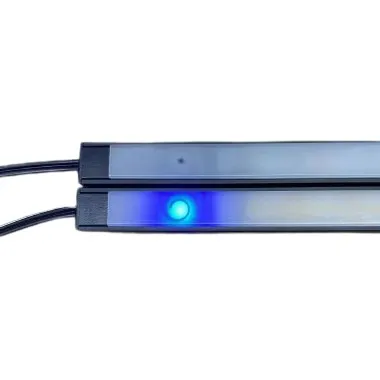

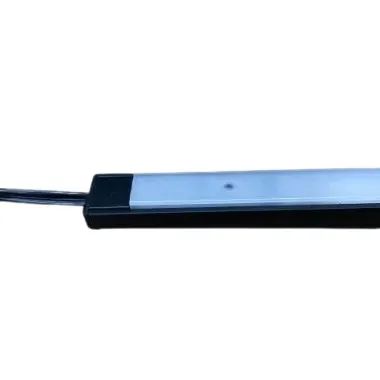

12V black, touch dimmable LED light bar which features a touch sensitive switch, tap to switch, long press and the light dims (the blue LED indicates the location of the switch). We can remove the blue glow and mark the diffuser to show the location of the switch – if you require this please tick the option in the menu.
Light is provided by modern, high efficiency LEDs using 9.6W/m – available with either cool white LEDs (825lm/m) or warm white LEDs (725lm/m).
The light bar is only 6mm high and 15mm wide and available in 30cm, 50cm to 1.0m lengths direct through the website or can be cut to length if you contact us direct via telephone or email.

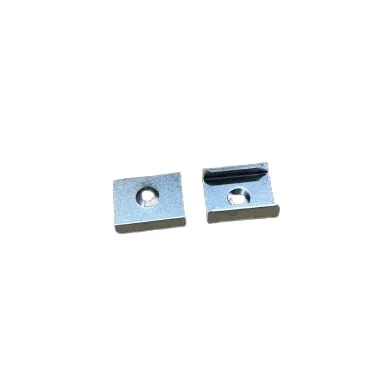

Each unit includes two mounting clips (although a good self-adhesive tape or adhesive could be used to mount the channel) and a cable to connect to your 12V supply, cable lengths can be selected below.
The quiescent current with the blue LED is 9mA and 4mA without.
Please note that when ordered in lengths above 50cm, delivery will be made via a courier and will take 3-4 working days from date of order. Please contact us if a speedier service is required.
The quiescent current with the blue LED is 9mA and 4mA without.
Requires a 12V DC power supply, so can be connected direct to a 12V caravan, motorhome or boat supply – alternatively these are widely used under cupboards in the home and just requires an appropriate 12V DC constant voltage LED driver such as here
Input Voltage 12V DC
Light Output – Cool White (825lm/m), Warm White (725lm/m).
Dimensions 6mm tall, 15mm wide
Power Use – 30cm – 2.2W, 50cm – 4.1W, 1m – 8.9W
