Description

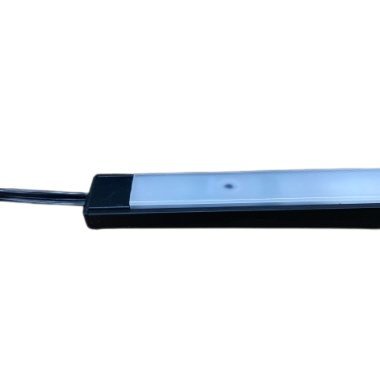

Touch control, colour temperature adjustable, black aluminum profile with frosted diffuser, available in set lengths on-line or can be made to custom lengths if contacted directly.
The fitting is only 6mm high and 15mm wide and available in 30cm, 50cm to 1.0m lengths direct through the website or can be cut to length if you contact us direct via telephone or email.
The light uses 120-LED/m dual chip LED, with each LED containing both a cool white and warm white LED.
Input Voltage 24V DC
Power use for each LED colour – 30cm – 2.2W, 50cm – 4.1W, 1m – 8.9W
Light Output – Cool White (825lm/m), Warm White (725lm/m)

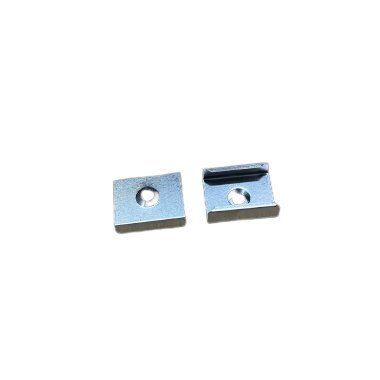

Each fitting includes two mounting clips (although a good self-adhesive tape or adhesive could be used to mount the channel) and a 50cm cable and longer cable length can be selected below.

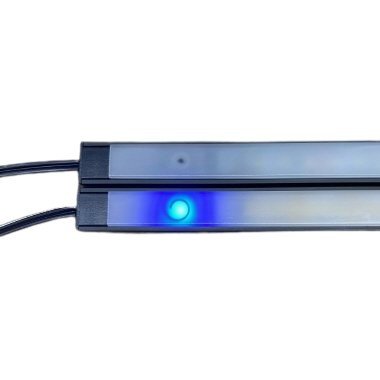

The quiescent current with the blue LED is 9mA and 4mA without.
The dimming switch has a built in memory so each of the three settings (cool white / warm white / mixed cool and warm) can be dimmed to the required level.
There is also a memory when the 12V power is disconnected, so reconnecting the 24V will return the light to the setting it was left in e.g. turn off the 24V fully with cool white dimmed light will result in a cool white dimmed light when the 24V is reconnected. If the light is turned off and the 24V removed, the light will be off when the 24V is reconnected.
