Description

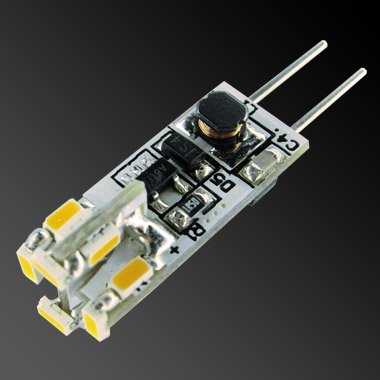

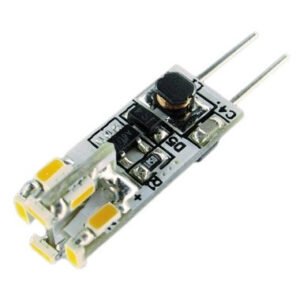

12V / 24V 12-LED G4 Capsule Bulb – Ultra-Compact Halogen Replacement (0.6W)

Upgrade your 5W G4 halogen capsule to efficient, low-power LED lighting with this ultra-compact 12-LED G4 tower bulb. Designed for 12V and 24V systems, this miniature LED lamp is ideal for caravans, motorhomes, boats, cabinet lights, bedside fittings, and decorative wall lights with small tulip glass shades. Delivering clean, reliable illumination while using just 0.6W, it dramatically reduces power consumption and heat output — perfect for leisure battery and off-grid installations.

Designed as a Direct 5W G4 Halogen Replacement

This 12-LED G4 has been carefully engineered to closely match the size and fit of a traditional G4 capsule, making replacement straightforward.

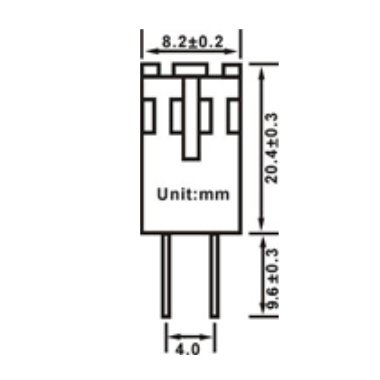

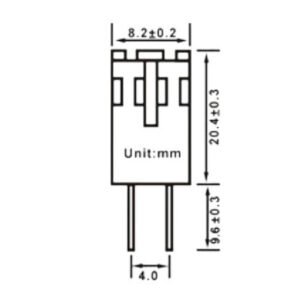

• Length: 20mm (excluding pins)
• Diameter: 8mm
• Same bi-pin G4 fitting

Its compact dimensions make it especially suitable for fittings with narrow glass shades or limited internal space where larger LED capsules may not fit.

Key Benefits

• Energy Saving Performance – Uses just 0.6W compared to a 5W halogen.
• Low Heat Output – Reduces heat build-up in enclosed fittings.
• Stable 10–30V DC Regulation – Suitable for both 12V and 24V systems.
• Ideal for Leisure & Marine Use – Designed to cope with voltage fluctuations.
• Long Lifespan – Backed by a 3-year guarantee.

Light Output & Colour Options

• Cool White (approx. 78 lumens) – Crisp, clean light ideal for kitchens, task lighting, and reading.
• Warm White (approx. 75 lumens) – Softer tone similar to traditional halogen for living areas and bedrooms.

Despite its very low wattage, the light output closely replicates a 5W halogen capsule while consuming a fraction of the power.

Perfect For

• Caravan & motorhome interior lighting
• Boat & yacht cabin lights
• Under-cabinet lighting
• Small decorative wall fittings
• Tulip glass shade fittings
• 12V off-grid and battery systems

Important Installation Note

If replacing halogen capsules in a household mains system using an existing transformer, please check the minimum load requirement of your transformer, as some older transformers may not operate correctly with low-wattage LED lamps.

Specifications

• Voltage: 10–30V DC
• Power Consumption: 0.6W
• Light Output: 78lm (CW) / 75lm (WW)
• Length: 20mm (excluding pins)
• Diameter: 8mm
• Cap Type: G4 bi-pin
• Guarantee: 2 Years
