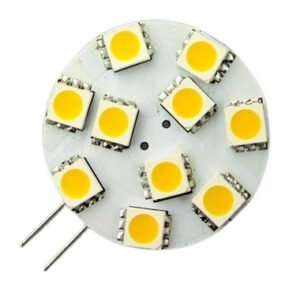

10 LED Side Pin G4

  • Code: 10LEDg4sidepin
  • |
  • Stock: In Stock

The 10-LED G4 has been designed to replace a 10W G4 halogen but provide approximately 65% more light. Designed to sit sideways into the light fitting.

Regulated from 10-30V DC, designed for use on 12V or 24V systems
Includes fuse and voltage spike protection

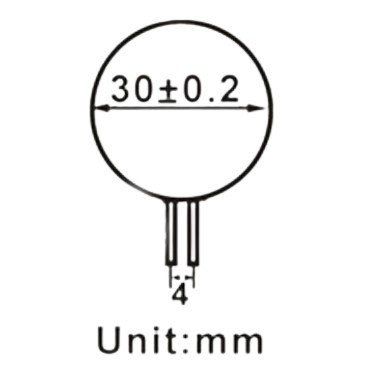

Diameter – 30mm
Approximate light output – 223lm CW / 209lm WW
1.6W power consumption
Not polarity Sensitive
3 year guarantee

The G4 halogen is one of the most common lamps used in caravans and motorhomes and is easily identified as a small glass lamp with two short pins spaced 4mm apart. The G4 halogen is commonly used in ceiling lights, wall lights, downlights and reading lights and is easily replaced with an LED alternative. This disc type LED G4 is used to provide light in one direction and are best used in downlighters, ceiling lights and spotlights. The 10-LED side pin is designed to replace a 10W halogen and provides approximatley 65% more light. This G4 sits sideways in the light fitting. We also have this 10-LED G4 as a back pin version and in smaller and larger versions too if a different light output is required. All of our G4 LED lamps are voltage regulated and are not polarity sensitive – i.e. the LED will light up whichever way the positive and negative power is applied so no rewiring is required.

£4.79
