Description

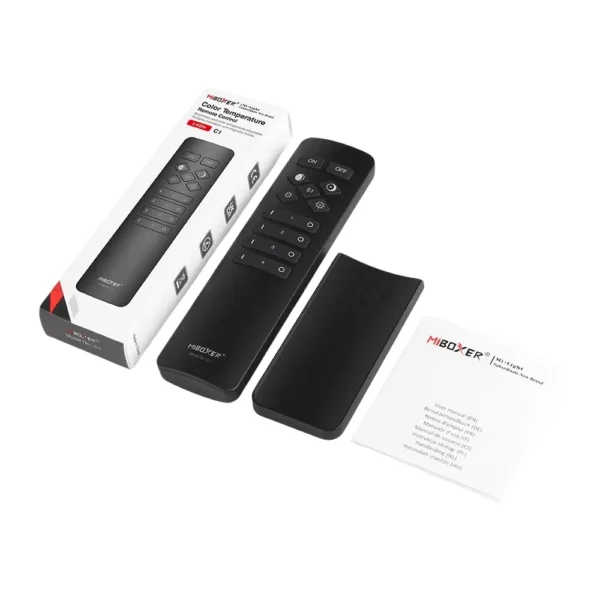

Mi-Light C1-W 4-Zone CCT & Single Colour LED Remote Control
The Mi-Light C1-W remote control provides simple wireless control of compatible
single colour and adjustable white CCT LED lighting. Also available in a black version here.
When paired with a suitable Mi-Light or MiBoxer 2.4GHz LED controller, the remote can be used to
switch the lighting on and off and smoothly increase or reduce the brightness.
When used with CCT adjustable white LED lighting, it can also change the colour temperature from
warm white to cool white, including any shade of white in between.
Suitable for Single Colour and CCT LEDs
The C1-W can be used with two different types of LED lighting:
- Single colour LED lighting: switch the LEDs on or off and adjust the brightness.
- CCT adjustable white LED lighting: switch the LEDs on or off, dim the brightness
and adjust the colour temperature between warm white and cool white.
The functions available will depend on the type of LED lighting and controller paired with the remote.
Four Independently Controlled Zones
The remote can operate up to four separate lighting zones. Each zone can be paired
with an individual controller, or with multiple controllers that you would like to operate together.
This allows different areas of a vehicle, boat, room or installation to be switched and adjusted
independently from one remote control.
A master on and off control is also provided, allowing all paired zones to be operated together.
Scene Memory Function
The dedicated scene button allows a preferred brightness or colour-temperature setting to be saved
and quickly recalled.
Reliable 2.4GHz Wireless Control
Mi-Light’s 2.4GHz radio-frequency technology provides fast, stable control without requiring the
remote to be pointed directly at the controller.
The remote has a control range of up to approximately 30 metres in suitable open conditions.
Walls, metalwork and electrical interference may reduce the operating distance.
Magnetic Wall Cradle
The remote is supplied with a slim magnetic cradle with self-adhesive backing. The cradle can be fixed
to a suitable surface, allowing the remote to be stored neatly and removed whenever handheld control
is required.
Product Features
- Suitable for compatible Mi-Light and MiBoxer 2.4GHz controllers
- Controls single colour and CCT adjustable white LED lighting
- Switches the connected LEDs on and off
- Smooth brightness adjustment
- Warm-to-cool colour-temperature adjustment when used with CCT LEDs
- Four independently controlled lighting zones
- Master control for all paired zones
- Programmable scene memory button
- 2.4GHz RF wireless communication
- Control distance of up to approximately 30 metres
- Compact magnetic wall cradle included
Controller Required
Please note: this product is the remote control only. It does not connect directly
to LED strip or LED lights and requires a suitable Mi-Light or MiBoxer receiver/controller.
The controller is installed between the 12V or 24V DC power supply and the LED lighting. Please select
a controller that is suitable for either single colour or CCT lighting, depending on the LEDs being used.
Single colour LED controllers – here
Adjustable White LED controllers – here
Free Pairing Service
When this remote is purchased together with a compatible controller, we will pair the remote and
controller before dispatch so that they are ready to connect and use.
Specifications
Product Specification
Brand
Mi-Light / MiBoxer
Model
C1-W
Lighting types
Single colour and CCT adjustable white
Number of zones
4
Wireless frequency
2.4GHz RF
Control distance
Up to approximately 30m in suitable open conditions
Operating voltage
3V
Batteries
2 × AAA batteries required – not included
Remote dimensions
140mm long × 37.5mm wide × 15mm deep
Operating temperature
-10°C to 40°C
Pack contents
Remote control, magnetic self-adhesive cradle and instructions
