Touch Dimmable LED Black Downlight

  • Code: ATB3WRD
  • |
  • Stock: In Stock

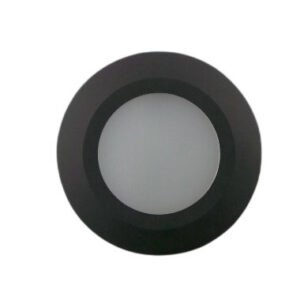

Anodised black touch dimmable/switched downlight designed for recess mounting, made with a metal body and bezel. The light fitting has built in LEDs, providing a bright light for just 3W of power.  This fitting is turned on/off by touching the black bezel and a long press will dim/brighten the light.

Diameter: 69mm, depth just 15mm (very low profile)
Cut-out for recess: 58mm-62mm
Input Voltage: 10-30V DC
Approximate light output: 230lm (warm white), 250lm (cool white)
3.0W power consumption
2 years guarantee

Anodised black touch dimmable downlight, designed for mounting into a small hole. The light fitting has built in LEDs, is suitable for 12V DC or 24V DC use as it is regulated from 10-30V.  Requires a suitable LED driver if being used in the house, view our range here.

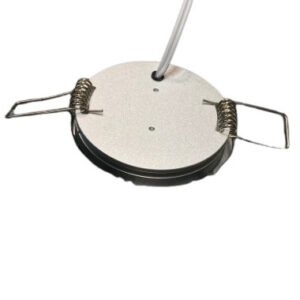

The unit requires a 58 -62mm cut-out and has spring clips located to the rear to hold the light into place. The light can be used as replacements for older fittings or can be used to provide additional lighting under cabinets or where required.  The video below shows the switching and dimming using our nickel version.





Includes a built-in switch so only requires a simple two core, unswitched supply.  Please note, these lights will not operate via a separate switch (e.g. wall switch), they can only be turned on/off and dimmed via the inbuilt switch. Please see our LED black slim downlight here if an unswitched version is required.

As these units operate via conductivity they will not operate correctly if mounted into metal or if the unit or mounting springs touch any metal trim (including metal covered insulation to the rear of panels).

Also available with an aluminium, chrome, gold, nickel or white finish – please see out other listings.



£13.99

You may also like…

Description

Anodised black touch dimmable downlight, designed for mounting into a small hole. The light fitting has built in LEDs, is suitable for 12V DC or 24V DC use as it is regulated from 10-30V.  Requires a suitable LED driver if being used in the house, view our range here.

The unit requires a 58 -62mm cut-out and has spring clips located to the rear to hold the light into place. The light can be used as replacements for older fittings or can be used to provide additional lighting under cabinets or where required.  The video below shows the switching and dimming using our nickel version.





Includes a built-in switch so only requires a simple two core, unswitched supply.  Please note, these lights will not operate via a separate switch (e.g. wall switch), they can only be turned on/off and dimmed via the inbuilt switch. Please see our LED black slim downlight here if an unswitched version is required.

As these units operate via conductivity they will not operate correctly if mounted into metal or if the unit or mounting springs touch any metal trim (including metal covered insulation to the rear of panels).

Also available with an aluminium, chrome, gold, nickel or white finish – please see out other listings.



Additional information

LED Colour

,
