Description

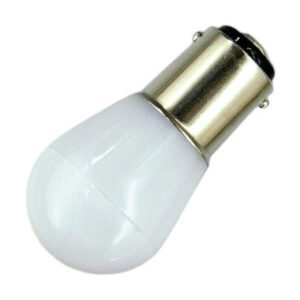

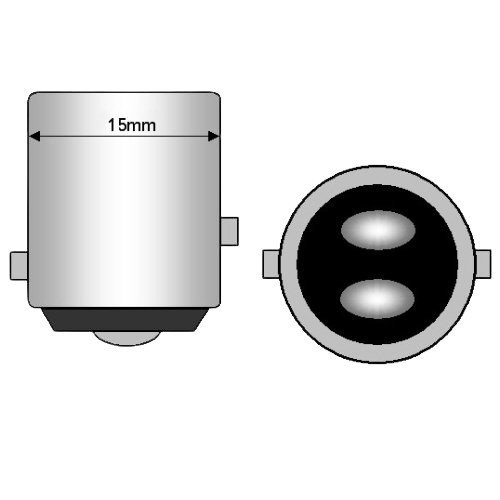

The 15-LED bayonet frosted lamp has been designed for use in place of a 15mm Bay15d (double contact with offset pin) tungsten lamp in either 12V or 24V systems. The lamp is approximately 25% brighter than a 10W halogen. Ideal for using where the lamp remains visible in the fitting as the frosted plastic diffuser conceals the LEDs.
Power taken from contacts on base
Regulated from 10-30V
Includes Voltage Spike Suppressor and Fuse
Diameter – 25mm, Length 48mm (including cap)
Approximate light output – 120lm
1.4W power consumption
3 year guarantee
