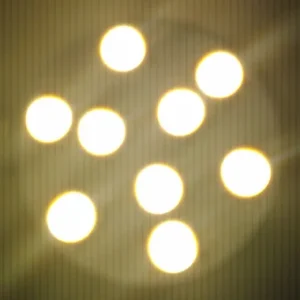

Hi Output 9-LED

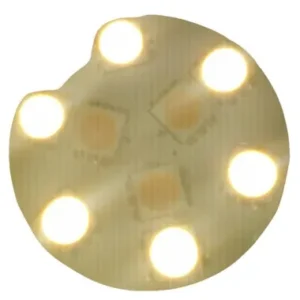

Mid Output 6-LED
Lo Output 3-LED
LED G4 Control Circuit
|

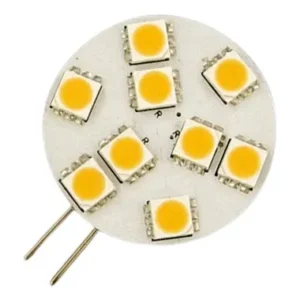

Dimming LED Side Pin G4

  • Code: 963LEDG4
  • |
  • Stock: In Stock

This is our latest product and provides the light output of a 20W halogen, 10W halogen and 5W halogen all in a single LED unit. Using our dimming LED in a light fitting gives you the option for 3 different levels of light output simply by turning the light off then on.

First switch on illuminates the 9-LEDs, after turning off and on 6-LEDs are lit then turning off and on again illuminates just 3-LEDs. If left off for approximately 3 seconds, the light will revert back to 9-LED output. Even on full output, only 2.1W is used which is a substantial saving compared to halogen.

The unit has been designed to replace a G4 halogen sitting sideways into the light fitting.

Regulated from 10-30V so suitable for 12V or 24V systems
Includes fuse and voltage spike protection
Diameter – 30mm
Approximate light output – 9-LED 210lm, 6-LED 120lm, 3-LED 60lm
Power consumption – 9-LED 2.1W, 6-LED 1.3W, 3-LED 0.7W
Not polarity sensitive
3 year guarantee

The G4 halogen is one of the most common lamps used in caravans and motorhomes and is easily identified as a small glass lamp with two short pins spaced 4mm apart. The G4 halogen is commonly used in ceiling lights, wall lights, downlights and reading lights and is easily replaced with an LED alternative. This disc type LED G4 is used to provide light in one direction and are best used in downlighters, ceiling lights and spotlights. All of our G4 LED lamps are voltage regulated and are not polarity sensitive – i.e. the LED will light up whichever way the positive and negative power is applied so no rewiring is required.

£8.99
