Black Touch Dimmer Switch for 12V / 24V LED Lighting
£8.49
Black Touch Dimmer Switch for 12V / 24V LED Lighting
- Touch dimming control
- Compact recessed design
- Built-in memory function
£8.49
- Product Code: ALSWD1B
- |
- In Stock
Description

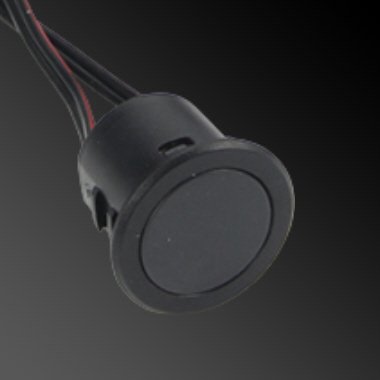

Black Recessed Touch Dimmer Switch for 12V / 24V LED Lighting
The Aten Recessed LED Touch Dimmer Switch provides simple and stylish control for your 12V or 24V LED lighting. Designed for caravans, campervans, boats and off-grid installations, this compact switch allows you to turn your lights on and off with a quick tap and adjust the brightness by touching and holding the button.
Perfect for use with our flexible LED strips and other compatible dimmable LED lighting, the low-profile switch mounts neatly into a surface or panel. It requires only a 17mm cut-out and approximately 20mm recess depth, making it ideal for tight spaces and modern interiors where a clean finish is important.
The built-in memory function means your lights return to their previous brightness setting when switched back on using the touch button. Each switch is supplied with approximately 95cm of pre-fitted cable, ready to connect to a 12V or 24V DC lighting system.
Available in black, white and chrome finishes. The chrome version features soft blue illumination around the button for a subtle, modern appearance.
Key Features & Benefits
- Touch control – tap to switch the lights on or off, or touch and hold to adjust the brightness smoothly.
- Built-in memory function – remembers the last brightness setting when operated using the touch button.
- Compact recessed design – ideal for installation in walls, panels, furniture and cabinetry.
- 12V or 24V DC operation – suitable for compatible low-voltage dimmable LED lighting.
- Simple inline wiring – connects between the DC power supply and the LED light or strip.
- Versatile installation – suitable for caravans, motorhomes, campervans, boats and home projects.
- Choice of finishes – available in black, white or illuminated chrome.
Ideal For
- Caravan, campervan and motorhome LED lighting
- Boat cabin and galley lighting
- Under-cabinet and accent LED strips
- Off-grid 12V and 24V lighting systems
Wiring Information

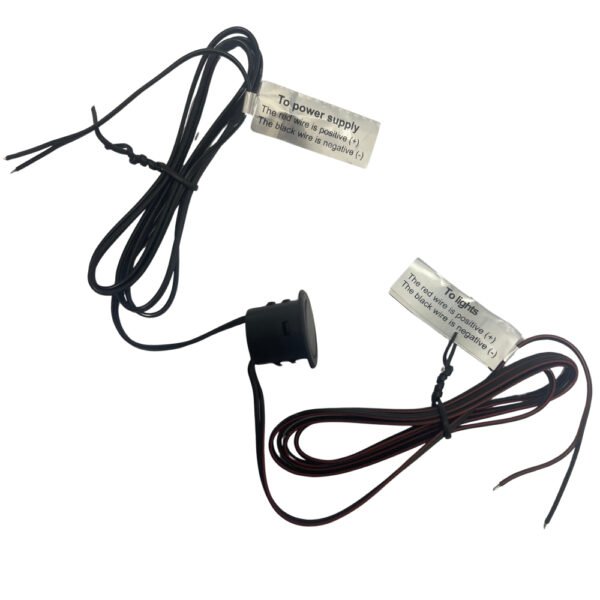

Each Aten Touch Dimmer Switch is supplied with clearly labelled input and output cables for straightforward installation. Both cables are two-core and include a positive (+) and negative (–) connection.
- Input cable: Connects to your 12V or 24V DC power source, such as a leisure battery or suitable LED driver.
- Output cable: Connects to your compatible dimmable LED strip or light fitting.
The dimmer is installed inline between the power source and the LED load, providing convenient on/off and brightness control. Always observe the correct polarity when making the connections.
Specifications
Input Voltage – 12V / 24V DC
Maximum Load – 4A
Mounting Hole – 17mm diameter
Switch Diameter – 22mm
Recess Depth – 20mm
Cable Length – Approx. 95cm
Control Type – Touch on/off and dimming
Finish Options – Black, White, Chrome (with blue illumination)
