21 LED Bay15d Double Contact (offset pins)

  • Code: 21led_bay15d
  • |
  • Stock: In Stock

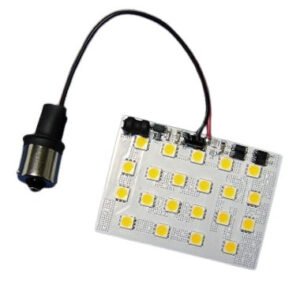

This 21 LED bayonet lamp is designed to provide wide angled light and once the cap is mounted into the fitting, the LED circuit can be angled to the desired position. This is an ideal light for use in awning lights or ceiling lights – use in place of a 15mm Bay15d (double contact with offset pin) tungsten lamp in either 12V or 24V systems.

Power taken from contacts on base
Regulated from 10-30V, designed for use on 12V or 24V systems
Includes voltage spike suppressor and fused circuit
Board size – 68mm * 48mm
Approximate light output – 480lm
4W power consumption
includes self adhesive panel on rear to mount to fitting
3 year guarantee

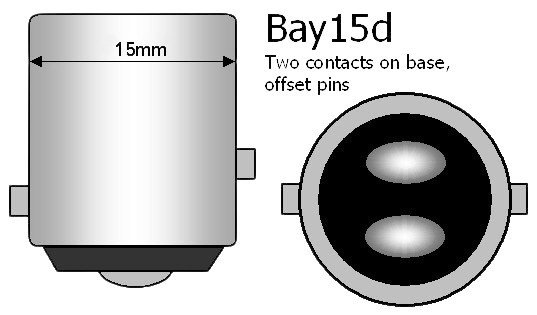

The bayonet fitting is commonly used in awning lights, spot lights, reading lights and many light fittings in the American RVs. The tungsten bayonet is easily replaced with an LED alternative. In order to identify the most suitable replacement for the bayonet lamp it is necessary to find the diameter of the metal cap and count the number of metal ‘spots’ located on the base. The most common diameter is a 15mm cap, although standard household 22mm versions are sometimes used as well as Edison Screw caps. If the cap has a 15mm diameter and one metal spot is located on the bottom , the lamp is a Ba15s, 1156 or SCC version, if two spots are located on the bottom, the lamp is a Ba15d, 1142 or SBC version. Occasionally the 15mm cap can have two metal spots and off set pins, in which case you require the Bay15d cap. Edison Screw caps are comely 14mm diameter (E14 or SES) or 27mm diameter (E27 or ES).

This is an ideal choice for awning light replacements, as the lamp can be mounted into teh fitting and the circuit angled to project light out from the van, although occasionally customers use tower bayonets to provide light within a cupboard if required.

£7.29

You may be interested in…

  • 24 LED Bayonet Tower

    24 LED Bay15d Double Contact (offset pins)

    £7.99
    Select options This product has multiple variants. The options may be chosen on the product page
  • 18-LED-Bayonet-Tower

    18 LED Bayonet B22 / BC

    £7.79
    Select options This product has multiple variants. The options may be chosen on the product page
  • 8-LED-Bayonet-Spotlight

    8 LED Ba15s Spotlight – Long Neck

    £4.99
    Select options This product has multiple variants. The options may be chosen on the product page
  • 30-LED-Navigation-Lamp

    30 LED Navigation Lamp Bay15d

    £15.49
    Select options This product has multiple variants. The options may be chosen on the product page
  • You may also like…

    Description

    The bayonet fitting is commonly used in awning lights, spot lights, reading lights and many light fittings in the American RVs. The tungsten bayonet is easily replaced with an LED alternative. In order to identify the most suitable replacement for the bayonet lamp it is necessary to find the diameter of the metal cap and count the number of metal ‘spots’ located on the base. The most common diameter is a 15mm cap, although standard household 22mm versions are sometimes used as well as Edison Screw caps. If the cap has a 15mm diameter and one metal spot is located on the bottom , the lamp is a Ba15s, 1156 or SCC version, if two spots are located on the bottom, the lamp is a Ba15d, 1142 or SBC version. Occasionally the 15mm cap can have two metal spots and off set pins, in which case you require the Bay15d cap. Edison Screw caps are comely 14mm diameter (E14 or SES) or 27mm diameter (E27 or ES).

    This is an ideal choice for awning light replacements, as the lamp can be mounted into teh fitting and the circuit angled to project light out from the van, although occasionally customers use tower bayonets to provide light within a cupboard if required.
