Touch Dimmable Corner Profile LED – Different Lengths Available

  • Code: ALUTDCFR
  • |
  • Stock: In Stock

12V DC corner aluminum profile with built in touch dimming switch

Available in 30cm, 50cm or 1m lengths

Cable length can be selected as required

Option to disable the blue LED to show touch switch location below if required

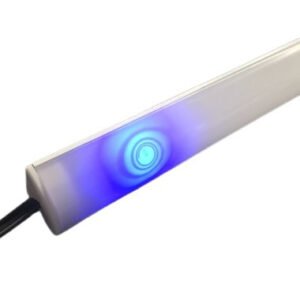

This our touch dimmable LED light fitting which features our touch sensitive switch, tap to switch, long press and the light dims (the light blue glow indicates the location of the switch).  This is suitable for use in caravans, motorhomes and boats using the 12V circuit or via an LED driver (Available Here) if using in the house.

Light is provided by our LED strip lighting which uses 9.6W/m – available with either cool white LEDs (825lm/m) or warm white LEDs (725lm/m).

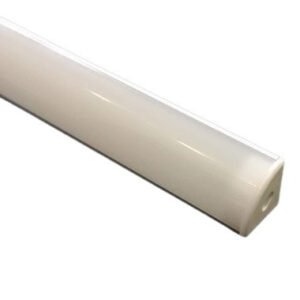

The fitting uses our corner profile aluminium and is 16mm tall and 16mm wide and available in 30cm, 50cm to 1.0m lengths direct through the website or can be cut to length if you contact us direct via telephone or email.

Each fitting includes two mounting clips (although a good self-adhesive tape or adhesive could be used to mount the channel) and a 30cm cable, additional cable lengths can be selected below.

If required, we can remove the blue glow and mark the diffuser to show the location of the switch – if you require this please select from the menu.

The quiescent current with the blue LED is 9mA and 4mA without.



Please note that when ordered in lengths above 50cm, delivery will be made via a courier and will take 3-4 working days from date of order. Please contact us if a speedier service is required.

Please note, we are unable to send any items longer than 50cm outside of the UK. If these are purchased to send outside of the UK we will have to refund the items.



£13.99£23.39

You may also like…

Description

This our touch dimmable LED light fitting which features our touch sensitive switch, tap to switch, long press and the light dims (the light blue glow indicates the location of the switch).  This is suitable for use in caravans, motorhomes and boats using the 12V circuit or via an LED driver (Available Here) if using in the house.

Light is provided by our LED strip lighting which uses 9.6W/m – available with either cool white LEDs (825lm/m) or warm white LEDs (725lm/m).

The fitting uses our corner profile aluminium and is 16mm tall and 16mm wide and available in 30cm, 50cm to 1.0m lengths direct through the website or can be cut to length if you contact us direct via telephone or email.

Each fitting includes two mounting clips (although a good self-adhesive tape or adhesive could be used to mount the channel) and a 30cm cable, additional cable lengths can be selected below.

If required, we can remove the blue glow and mark the diffuser to show the location of the switch – if you require this please select from the menu.

The quiescent current with the blue LED is 9mA and 4mA without.



Please note that when ordered in lengths above 50cm, delivery will be made via a courier and will take 3-4 working days from date of order. Please contact us if a speedier service is required.

Please note, we are unable to send any items longer than 50cm outside of the UK. If these are purchased to send outside of the UK we will have to refund the items.
