Description

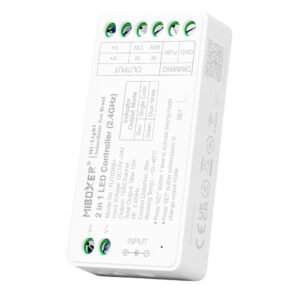

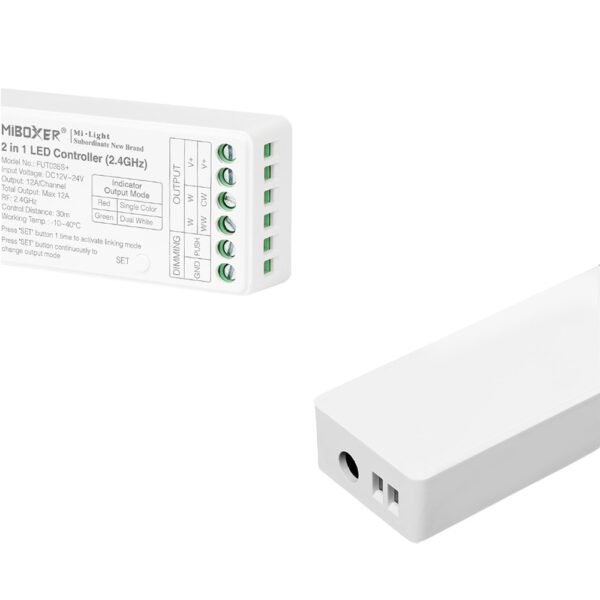

Mi-Light radio frequency LED controller for use with 12V or 24V Single Colour LED or CCT adjustable white LED lighting via a suitable remote control.

Brand: Mi-Light
Model: FUT035S+
Voltage : 12V or 24V
Maximum load: 12A
Controller Dimensions: 75mm * 36mm * 17mm tall

Please note this is the LED controller only and requires a suitable remote to pair to and operate the LEDs. We have a range of possible options for the remote which can be paired with the controller – several of these controllers can be paired to a single remote so that all operate at the same time to enable multiple lengths of LED to be operated in different areas.

If purchased with the remote we will pair the remote to the controller so the items are ready to connect and use.

Why a CCT Controller Is Required

An Adjustable White (CCT) LED strip has two different types of LEDs built in:

• Warm white LEDs (around 2700K) for a cosy, ambient glow.
• Cool white LEDs (up to 6500K) for bright, daylight-style illumination.

To achieve any shade of white in between, the strip needs to blend the two channels (warm + cool) at different intensities. This cannot be done by simply powering the strip directly, because you would only ever get one channel (all warm or all cool).

A CCT controller is therefore essential because it:

1. Controls both channels independently – it sends the right amount of current to the warm and cool LEDs.
2. Blends the light – by dimming one channel while increasing the other, it creates natural-looking whites across the full 2700K–6500K range.
3. Provides user-friendly control – via a remote, wall panel, or app, so you can easily set brightness and colour temperature to match the mood or task.

How a CCT Controller Works

• Connection: The LED strip connects to the controller using a 3-core cable (positive, warm white, cool white).
• Signal Processing: The controller regulates voltage to each LED channel according to your settings.
• Power Source: The controller sits between the 12V DC power supply and the LED strip, ensuring both safe operation and flexible control.

For example:

• Set the controller to 100% warm white, 0% cool white → cosy warm glow.
• Set to 50% warm white, 50% cool white → neutral white.
• Set to 0% warm white, 100% cool white → crisp daylight white.
